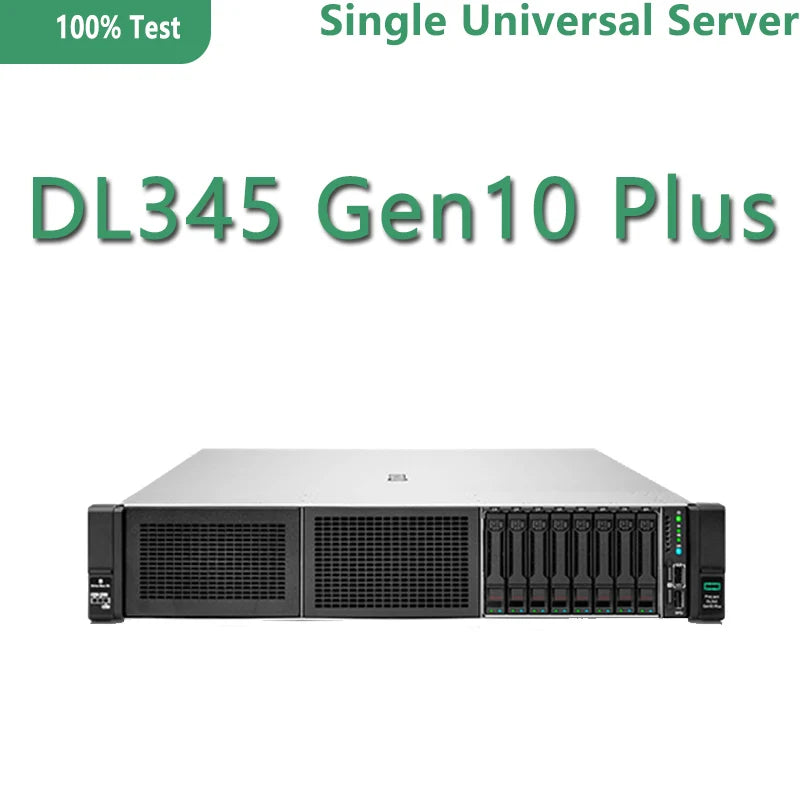

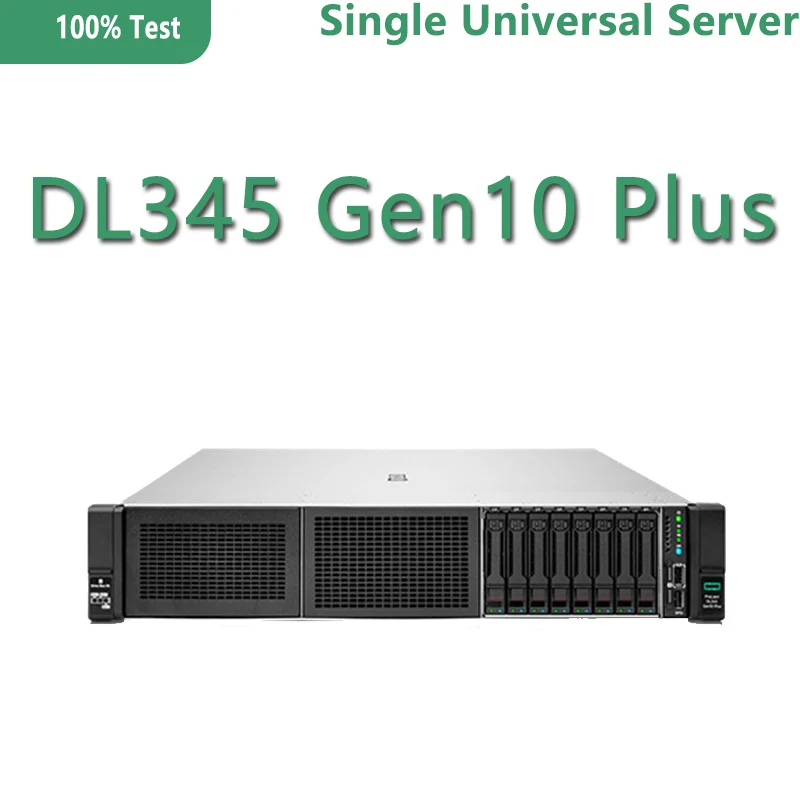

Cusromuzed for DL345 Gen10 Plus Single-socket Servers with 2U of Rack Storage Capacity Contact Sellers Get the Offer

Processor

Supports 1 second/third generation processor with up to 64 cores in a single unit, maximum power 280W.

Memory

Support up to 16 DDR4 memory, the rate of up to 3200MT / s, support for RDIMM or LRDIMM, the maximum capacity of a single processor 4TB

Storage Controller

Optional HPE Smart Array Module Controller or Vertical Card

Storage

Supports up to 26 2.5-inch SATA/SAS hard disks

Supports up to 12 3.5-inch SATA/SAS hard disks

Supports NVMe U.2, U.3 SSDs

Networking

Optional network adapter based on standard PCIe slot

Optional OCP 3.0 network card

Expansion Slots

4 PCIe 4.0 slots as standard

Interfaces

Rear VGA port, 4 USB ports

GPU Support

Up to 3 single-width GPU cards

Optical Drive

Supports external optical drive; some models support internal optical drive

Management

Standard iLO, optional iLO Premium and OneView Premium

Supports HPE iLO 5, SUM, and RESTful interface tools.

Support for mobile application software apps

Power and Cooling

Optional up to 1600W 1+1 hot-swappable redundant power supply, up to 96% Titanium; hot-swappable redundant fans supported

Operating Temperature

10°C - 35°C

Chassis Dimensions

87.5mm(H) x 445.4mm(W) x 711mm(D)
