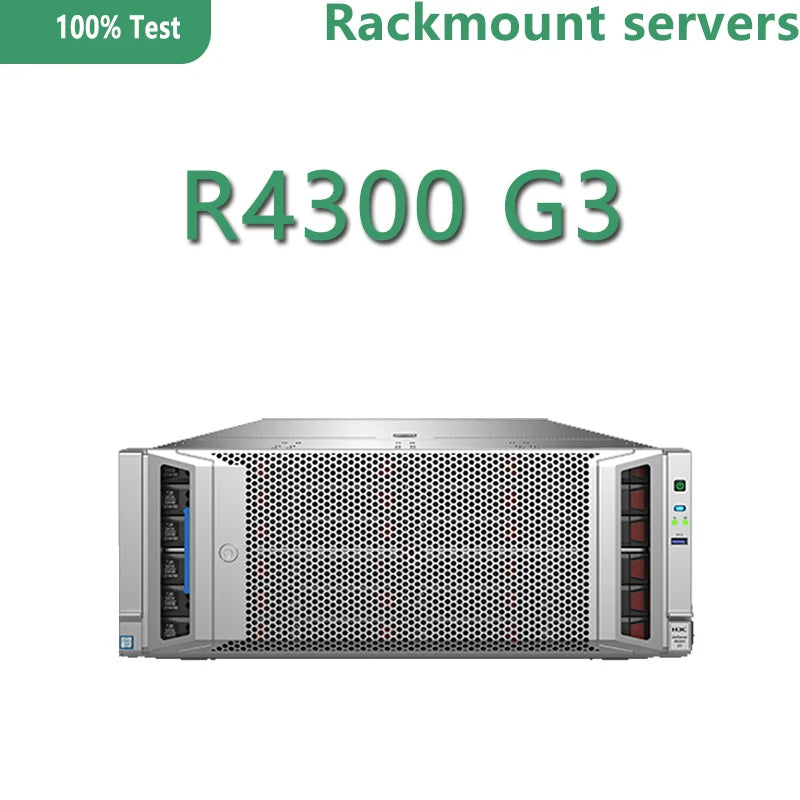

Cusromuzed for R4300 G3 4U 2-way Storage Optimized Rack Server Contact Sellers Get the Offer

Memory

24 DDR4 memory sticks at up to 2933MT/s, RDIMM or LRDIMM support, up to 3.0TB capacity

Storage Controller

Standard onboard array controller, supports SATA RAID 0/1/10/5

Optional HBA card based on array card proprietary slot, supports SATA/SAS RAID 0/1/10

Optional array card based on the array card proprietary slot, support RAID 0/1/10/5/6/50/60/1E/Simple Volume

Optional HBA and Smart Array Card options based on standard PCIe 3.0 slot

NVMe RAID support

FBWC

Supports up to 4GB of cache

Storage

Supports SAS/SATA/NVMe U.2 interface hard disks

Supports 24LFF on front panel; 12LFF+4LFF(2LFF)+4SFF on rear panel; Supports 4LFF* or 8SFF* for internal hard disk; Up to 10 NVMe hard disks optional

Supports SATA M.2 option

Networking

Onboard 1 x 1Gbps HDM management port, and 2 x GE data ports;

Supports expansion of 4 x 1G electrical ports and 2 x 10G optical ports via FLOM; FLOM can support NCSI function

Support standard PCIe 3.0 network adapter options, 10G, 25G, 100G NICs and 56G FDR, 100G EDR/HDR IB cards;

Expansion Slots

Up to 10 PCIe 3.0 expansion slots (including 1 dedicated slot for array cards, 1 dedicated slot for NICs and 6 full-height slots)

Interfaces

Standard rear VGA, serial port, 3 USB 3.0 (1 front, 2 rear)

GPU Support

Optional up to 2 double-wide GPU cards* or 8 single-wide GPU cards

Optical Drive

Supports external USB optical drive

Management

HDM agentless management tool (with separate management port) and H3C FIST management software

Security

Supports chassis intrusion detection; optional TCM/TPM security module

Power and Cooling

Optional up to two 550W/800W/800W(336VHDC)/1200W/1600W/800W(Titanium)* power supply modules with 1+1 redundancy, 80 Plus certified, and up to 96% energy-efficiency conversion rate; optional -48v DC power supply module

Supports up to 4 N+1 redundant hot-swappable fans

Certifications

Support CCC, CQC China Energy Conservation, CEC China Environmental Labeling and other certifications.

Operating Temperature

Operating temperature: 5~40ºC (operating temperature support is affected by different configurations, please refer to the detailed product technical documentation for details);

Storage ambient temperature: -40~85ºC

Form factor/chassis size

4U chassis;

174.8mm(H) x 447mm(W) x 782mm(D) (without security panel)

174.8mm(H) x 447mm(W) x 804mm(D) (with security panel)

Warranty

Three years 5*9, next business day response (NBD)


About the company.
Founded in 2011, we specialize in server and computer parts and authorized sellers. All items are authentic.


About the product:
(1) Since the system does not have accurate data, the "Specification" parameter is partially filled in by the system. Therefore, there are inaccuracies. If the customer cannot accurately judge the product, please contact customer service.

(2) "Product Inventory" We have upstream suppliers and purchasing teams; at the same time, we also have downstream wholesalers. The purpose of the online mall is to increase the company's sales channels. As a result, our product inventory and prices are subject to change. Due to the large number of products, it may not be updated in time. Customers are welcome to take the initiative to communicate with our customer service staff.

(3) "Product pictures" include standard pictures and some physical pictures provided by suppliers. The pictures are only for customers to identify the products and do not mean that the products received by customers will be exactly the same as those in the pictures. This should be common sense, so we won't explain it too much.

(4) "Testing" Due to expensive shipping costs, all products will be tested before shipping. We will also open and test brand-new products before shipping, unless the buyer requests not to test. Once there are problems with the product, please Contact customer service and we will solve the problem through online communication. If it cannot be solved online, the product needs to be sent back to us for inspection. The return shipping fee needs to be paid by the buyer.

(5) "Item Condition: Used", not measured by new standards. There may be scratches on the surface of the product, but it will not affect your use. Products will be released after rigorous testing, please feel free to use them.

About shipping.
(1). If you do not receive the package on time, please do not raise a dispute without contacting us. Please contact us first and we will help you solve the problem.

(2) .Make sure your address is correct. You will be responsible for all charges resulting from incorrect shipping information.

(3) The transportation terms of "Logistics" are FOB Shenzhen. We are not responsible for any customs duties incurred in the destination country. We can write down the low price to the declared value at your request, but we are not responsible for problems caused by the low declaration as this is an action taken at your request.

(4) The "estimated shipping date" is for reference only, please refer to the shipping time on AliExpress.

(5) "Packaging" We will pack it firmly (not in the original packaging and long-distance transportation is not accepted).

IMPORTANT PRE-PURCHASE NOTICE.
(1) "SIGN FOR" Please inspect the package before signing for it. If you are not satisfied with the product (such as brand, appearance, damage, etc.), please refuse to sign for it. Once you sign for a package, you agree to the condition of the item. If damage is found after receiving the goods, please provide an unboxing video and a complete damage certificate from the logistics company. If you cannot provide proof of damage, you will not be able to receive compensation.

(2) "Product Usage" Please do not modify or disassemble the product without our permission. We will not provide any warranty or refund once you modify or disassemble it, or if the warranty label is damaged.

(3) "Testing" We have a professional purchasing team. Some products are field tested at the time of purchase, so there may not be an opportunity to individually test and photograph each product in detail. We will take photos of each product to be shipped as evidence. We will test and take photos if necessary or possible.

(4) "Warranty" Our warranty period is generally 6 months. If you have any questions, please contact customer service or send the product back. We will inspect, repair or replace the product. Unless otherwise agreed, the customer must bear the return shipping cost of the product.

(5) "Return without reason" Our store does not accept returns or refunds without reason. There is only one valid reason: there is a problem with the product function, but the customer needs to provide sufficient professional evidence.

(6) "Dispute" We do not accept full refunds for any reason, but we also accept no returns. The customer is responsible for the cost of returning the product. Additionally, returned products should be in the same condition as when we sent them to the customer. If we discover any damage caused by the customer after we receive the goods, it will be the customer's responsibility.
