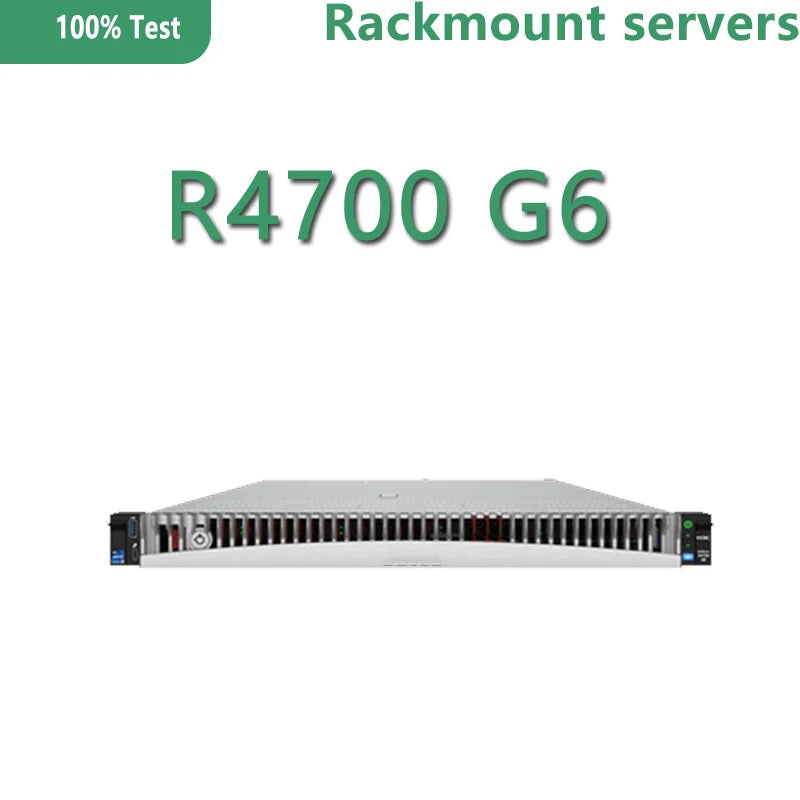

Cusromuzed for R4700 G6 1U Two-way Rackmount Server Contact Sellers Get the Offer

Processor

Supports two Scalable Series IV Sapphire Rapids CPUs or Fifth Generation Emerald Rapids CPUs with up to 64 cores each and up to 385W of power.

Supports Lancet processors

Supports HBM technology

Memory

Supports up to 32 DDR5 memory slots, up to 5600MT/s, RDIMM support, up to 8TB for dual processors.

Storage Controller

Standard onboard array controller, support SATA RAID 0/1/10/5

Optional HBA and array cards based on dedicated slots or standard PCIe slots.

FBWC

Optional support for up to 8GB of cache, support for supercapacitor protection

Storage

Supports up to 12 2.5-inch hard disks (10 front + 2 rear expansion)

Supports up to four 3.5-inch hard disks (four front)

Supports SAS/SATA HDD/SSD drives; supports up to 12 NVMe U.2 drive bays and up to 32 E1.S slots1

Optional SATA/NVMe M.2 option, DSD module

Networking

One 1Gbps dedicated management port on board

Up to 2 OCP 3.0 NIC slots onboard, optionally expandable with 4 x 1GE electrical or 2 x 10GE electrical/optical or 2 x 25GE optical or 2 x 100GE optical ports

Optional network adapter based on standard PCIe slot, supporting 1/10/25/100 GE NICs, InfiniBand cards, and Smart NICs

Expansion Slots

Supports up to 4 PCIe standard slots and 2 OCP 3.0 on-board slots, can support up to 3 PCIe5.0 and 1 PCIe4.0 standard slots; support CXL 1.1

Interface

Standard 1 front VGA (except E1.S model), 1 rear VGA, 4 USB ports (1 front, 2 rear, 1 internal), 1 front Type-C dedicated management interface; optional 1 management serial port

Liquid-cooling interface: UQD04 male connector or hose + UQD04 female connector out of the rear window of the chassis

GPU Support

Supports up to 4 single-wide GPU cards

Management

HDM agentless management tool (with independent management port) and H3C UniSystem management software; support LCD touchable intelligent management module

Optional U-Center data center management platform

Security

Supports security chassis, TCM/TPM security module, two-factor authentication, Intel PFR3.0 and SGX2.0 technologies

Power and Cooling

Supports CPU liquid cooling

Optional 800W/1300W/1600W/2000W/2400W 1+1 redundant power supply; optional negative 48V / 336V DC power module, supports 1+1 redundancy; optional platinum/titanium power supply

Supports up to 8 hot-swappable redundant fans.

Certifications

Support CCC, UL, CE and other certificates.

Operating Temperature

Air-cooled models: 5℃～45℃; Liquid-cooled models: 5℃～50℃ (operating temperature support is affected by different configurations, please refer to the detailed product technical documents for details)

Form factor/chassis size

1U chassis

42.9mm(H) x 434.6mm(W) x 777mm(D) (without security panel) (E1.S model depth 835mm)

42.9mm(H)×434.6mm(W)×805mm(D) (with security panel) (E1.S model depth 863mm)

Warranty

3 years 5 x 9, next business day response (NBD)
