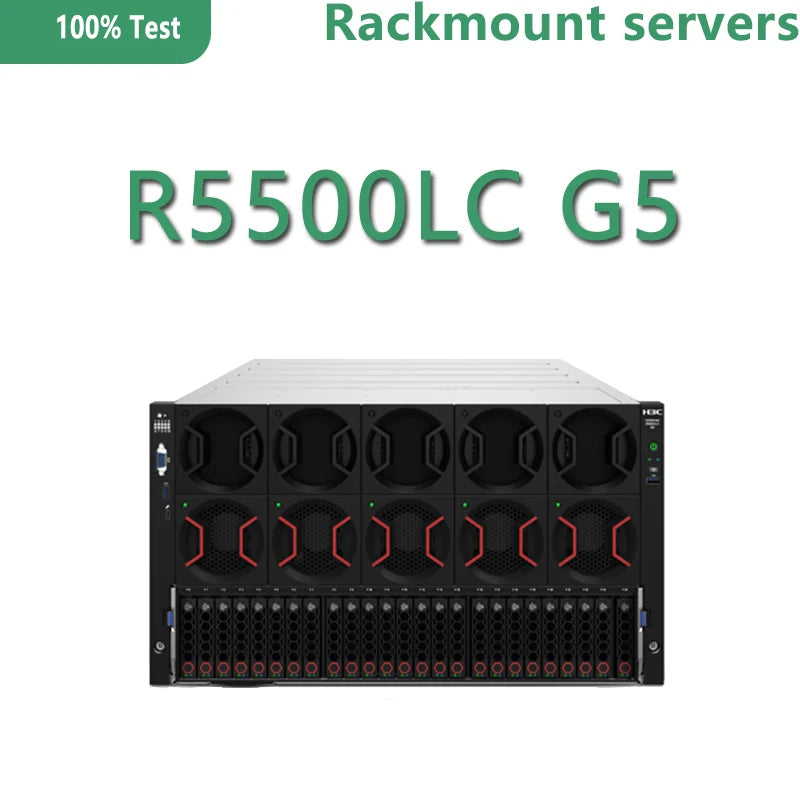

Cusromuzed for R5500LC G5 Artificial Intelligence Liquid Cooled Servers Contact Sellers Get the Offer

GPU Computing Modules

A800 8-GPU, 500W

Processors

Up to 40 cores on a single one, max. 270W

Memory

Supports up to 32 DDR4 memory slots at up to 3200MT/s, RDIMM or LRDIMM, up to 12TB capacity.

Storage Controller

Optional high-performance RAID controller, support RAID0/1/10/5/6/50/60

PCIe Slots

Supports up to 9 PCIe 4.0 standard slots + 1 OCP 3.0 NIC dedicated slot

Hard Disk

System SAS/SATA/NVMe hard disk configuration:

- 25x2.5-inch SAS/SATA/NVMe (12 x NVMe supported)

- 8x2.5-inch SAS/SATA/NVMe (can support 8 x NVMe)

Networking

Optional OCP 3.0 NIC with optional 1/10/25/40/50/100/200GE PCIe standard NICs

Fans

5 high-performance fans, support N+1 redundancy

Management Software

HDM agentless management tool (with independent management port) and H3C FIST management software

Interfaces

2 USB 3.0 + 1 VGA + 1 TypeC Debug port (front panel), 2 USB 3.0 (internal), 2 USB 3.0 + 1 VGA + 1 serial port + 1 HDM management network port (rear panel)

Power Supply

Supports 4 x 3000W + 2 x 2400W/2000W Platinum power supplies, supports N+N redundancy

Operating Temperature

5℃~35℃ (Operating temperature support is affected by different configurations, please refer to the detailed product technical document description)

Form Factor/Chassis Size

6U chassis; 263.7mm (H) x 482.6mm (W) x 847mm (D)

Liquid Cooling Module

Quick Connect Model UQD04 Female. No connector conversion, Rear View Server Rear Window The hose connection rule is left inlet and right outlet, the hose material should be non-renewable flame-retardant EPDM (EPDM), the inner diameter should be 5mm~7mm to prevent the pipeline from being blocked.

Warranty

Three years 5x9, next business day response (NBD)
