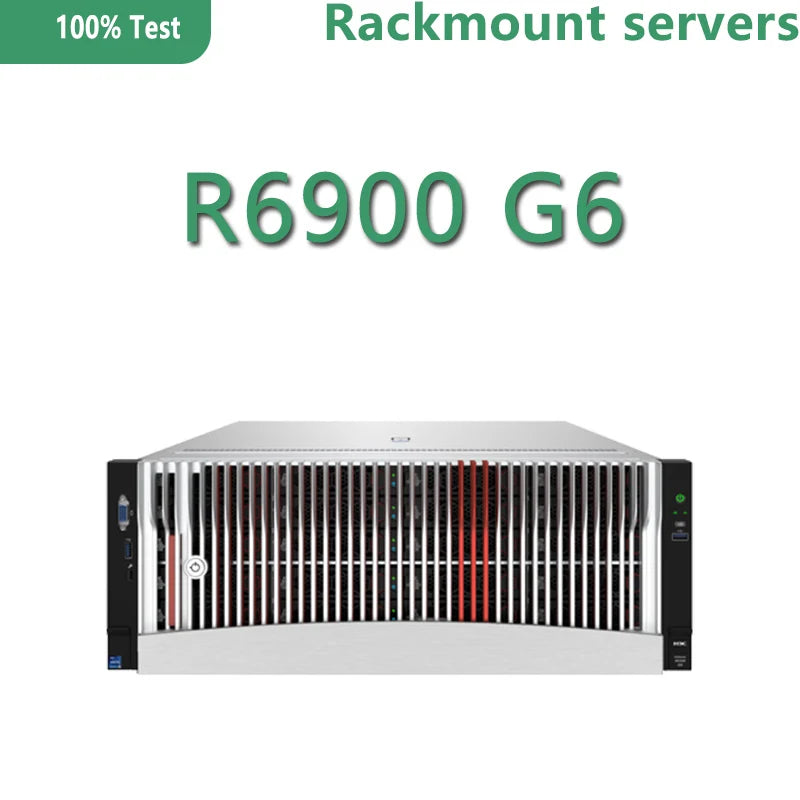

Cusromuzed for R6900 G6 4U Quad Rackmount Server Contact Sellers Get the Offer

Computing

Up to 60 cores on a single processor with a maximum power of 350W.

Memory

64 sticks of DDR5 memory with a maximum speed of 4800MT/s

Storage Controller

Optional HBA and array cards based on standard PCIe slots; supports dual M.2 configurations with Raid1 as the OS installation disk; supports SD card as boot disk

FBWC Cache

Optional support for up to 8GB* cache, support for super capacitor protection

Storage

Support 50 SAS/SATA HDD/SSD hard disk support 32 NVMe hard disk

Support PCIe NVMe storage accelerator card, optional dual M.2 option

Networking

One 1Gbps dedicated management port on board

Optionally, through the OCP 3.0 x16 open interface, expand 4 × 1GE electrical port or 2 × 10GE electrical/optical port or 2 × 25GE optical port

Optional 1Gb/10Gb/25Gb/40Gb/100Gb Ethernet card or 100Gb/200Gb IB card

Expansion Slots

Supports up to 10 x16 PCIe 5.0 slots Supports up to 22 x8 PCIe 5.0 slots Supports up to 2 OCP3.0

Interfaces

Right Lug: 1x USB3.0, Power-Button, UID Left Lug: 1x USB3.0+1x Type-C+1x VGA

Rear 1 VGA, 1 serial port, 2 USB3.0, 1 BMC dedicated management network port; support UID button/indicator light

GPU Support

Supports up to 6 double-wide GPU cards Supports up to 10 single-wide GPU cards

Optical Drive

Support external optical drive

Management

HDM agentless management tool (with independent management port) and H3C UniSystem management software, support for LCD touchable intelligent management module, support for 64M local video memory optional U-Center data center management platform

Security

Supports security chassis, TCM/TPM security module, optional trusted silicon root firmware protection module, two-factor authentication, secure decommissioning function

Power and Cooling

Optional up to 4 platinum grade 800W/850W/1300W/1600W/2000W/2400W power supplies, support N+N redundancy settings, optional titanium grade* optional 1600W 336V/48V DC power supply module, support N+N redundancy settings

Supports 8 N+1 hot-swappable redundant fans, 8038 or 8056 fans can be selected on demand

Certifications

Support CCC, environmental labeling and other certifications

Operating Temperature

5℃～45℃(Operating temperature support is affected by different configurations, please refer to the detailed product technical documents for more details)

Form factor/chassis dimensions

(H x W x D)

With security panel: 174.8mm x 447.0mm x 858mm Without security panel: 174.8mm x 447.0mm x 830mm

Warranty

Three years 5 x 9, next business day response (NBD)
