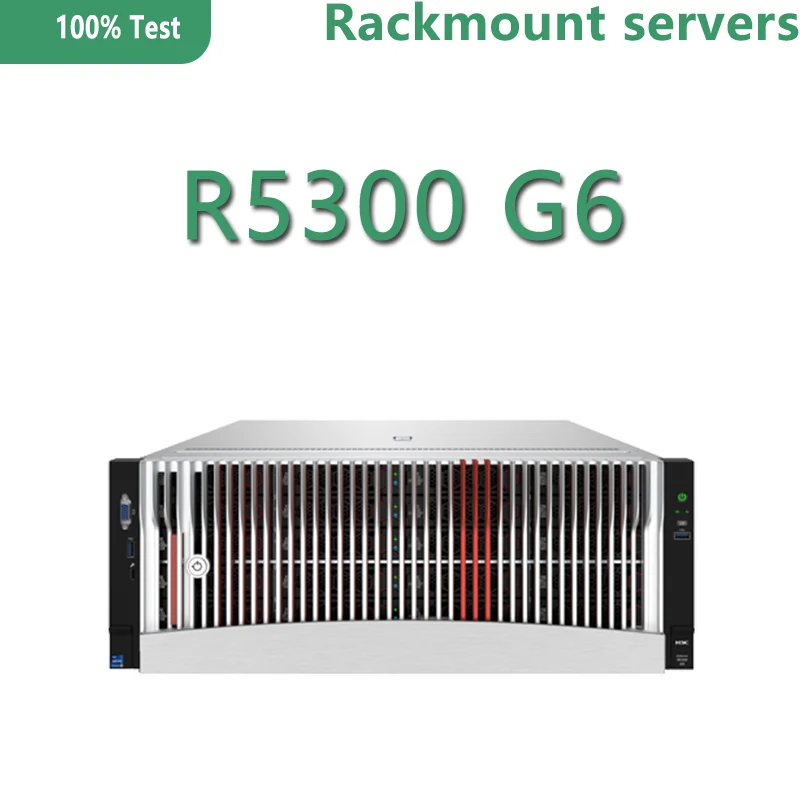

Customized Rack Server for R5300 G6 4U Two-way AI Intel Processor-Contact Sellers for Offer

GPU Computing Modules

8 GPU Modules

4-Card Passthrough Module

8-Card Passthrough Module

GPU Support

Supports up to 10 double-wide GPUs

Supports up to 6 double-wide GPUs

Supports up to 10 double-wide GPUs

Processor

Up to 60 cores on a single processor with a maximum power of 350W.

Memory

Supports up to 32 DDR5 memory slots at up to 5600MT/s, RDIMM or LRDIMM, up to 12TB for dual processors.

Supports CXL 1.1*; supports HBM technology*;

Storage Controller

Optional high-performance RAID controller, supports RAID0/1/10/5/6/50/60/Tri-Mode*.

PCIe Slots

8 dual-width x16 slots PCIe5.0, 4 single-width x16 slots PCIe5.0, 1 dedicated slot for OCP 3.0 NIC and 1 dedicated slot for Array Card

6 double-wide x16 slots PCIe5.0, 1 dedicated slot for OCP 3.0 NICs and 1 dedicated slot for array cards

10 dual-width x 16 slots PCIe 5.0, 1 dedicated slot for OCP 3.0 NICs and 1 dedicated slot for array cards

Front Hard Disk Expansion

System SAS/SATA/NVMe hard disk configuration:

● 24 2.5/3.5-inch SAS/SATA/NVMe (can support 8 NVMe), support 2 onboard M.2

● 12 2.5/3.5-inch SAS/SATA/NVMe (can support 8 NVMe), support 2 onboard M.2

Networking

Optional OCP 3.0 NIC, optional 1/10/25/50/100/200/400GE PCIe standard NICs

Fans

Support 8 8056 fans, N+1 hot-swappable redundant fans

Management Software

HDM agentless management tool (with independent management port) and H3C UniSystem, supports LCD touchable intelligent management module, supports 64M local video memory*.

Optional U-Center data center management platform

Security

Supports chassis intrusion detection; two-factor authentication; supports Intel PFR3.0 and SGX2.0 security technologies; supports TCM/TPM security module;

Interface

1 USB 3.0 + 1 USB 2.0 + 1 VGA + 1 TypeC Debug port (front panel), 1 USB 2.0 (internal), 2 USB 3.0 + 1 VGA + 1 1Gbps dedicated management network port (rear panel), optional 1 management serial port*

Power Supply

Supports four 2000W/2400W/2700W* Platinum power supplies, optional Titanium power supply*, supports N+N redundancy

Operating Temperature

5℃~35℃ (the operating temperature is affected by different configurations, please refer to the detailed description of the product technical documents)

Form factor/chassis size

4U chassis;

174.8mm (H) x 447mm (W) x 828mm (D) (without security panel)

174.8mm (H) x 447mm (W) x 856mm (D) (with security panel)

Warranty

Three years 5*9, next business day response (NBD)


About the company.
Founded in 2011, we specialize in server and computer parts and authorized sellers. All items are authentic.


About the product:
(1) Since the system does not have accurate data, the "Specification" parameter is partially filled in by the system. Therefore, there are inaccuracies. If the customer cannot accurately judge the product, please contact customer service.

(2) "Product Inventory" We have upstream suppliers and purchasing teams; at the same time, we also have downstream wholesalers. The purpose of the online mall is to increase the company's sales channels. As a result, our product inventory and prices are subject to change. Due to the large number of products, it may not be updated in time. Customers are welcome to take the initiative to communicate with our customer service staff.

(3) "Product pictures" include standard pictures and some physical pictures provided by suppliers. The pictures are only for customers to identify the products and do not mean that the products received by customers will be exactly the same as those in the pictures. This should be common sense, so we won't explain it too much.

(4) "Testing" Due to expensive shipping costs, all products will be tested before shipping. We will also open and test brand-new products before shipping, unless the buyer requests not to test. Once there are problems with the product, please Contact customer service and we will solve the problem through online communication. If it cannot be solved online, the product needs to be sent back to us for inspection. The return shipping fee needs to be paid by the buyer.

(5) "Item Condition: Used", not measured by new standards. There may be scratches on the surface of the product, but it will not affect your use. Products will be released after rigorous testing, please feel free to use them.

About shipping.
(1). If you do not receive the package on time, please do not raise a dispute without contacting us. Please contact us first and we will help you solve the problem.

(2) .Make sure your address is correct. You will be responsible for all charges resulting from incorrect shipping information.

(3) The transportation terms of "Logistics" are FOB Shenzhen. We are not responsible for any customs duties incurred in the destination country. We can write down the low price to the declared value at your request, but we are not responsible for problems caused by the low declaration as this is an action taken at your request.

(4) The "estimated shipping date" is for reference only, please refer to the shipping time on AliExpress.

(5) "Packaging" We will pack it firmly (not in the original packaging and long-distance transportation is not accepted).

IMPORTANT PRE-PURCHASE NOTICE.
(1) "SIGN FOR" Please inspect the package before signing for it. If you are not satisfied with the product (such as brand, appearance, damage, etc.), please refuse to sign for it. Once you sign for a package, you agree to the condition of the item. If damage is found after receiving the goods, please provide an unboxing video and a complete damage certificate from the logistics company. If you cannot provide proof of damage, you will not be able to receive compensation.

(2) "Product Usage" Please do not modify or disassemble the product without our permission. We will not provide any warranty or refund once you modify or disassemble it, or if the warranty label is damaged.

(3) "Testing" We have a professional purchasing team. Some products are field tested at the time of purchase, so there may not be an opportunity to individually test and photograph each product in detail. We will take photos of each product to be shipped as evidence. We will test and take photos if necessary or possible.

(4) "Warranty" Our warranty period is generally 6 months. If you have any questions, please contact customer service or send the product back. We will inspect, repair or replace the product. Unless otherwise agreed, the customer must bear the return shipping cost of the product.

(5) "Return without reason" Our store does not accept returns or refunds without reason. There is only one valid reason: there is a problem with the product function, but the customer needs to provide sufficient professional evidence.

(6) "Dispute" We do not accept full refunds for any reason, but we also accept no returns. The customer is responsible for the cost of returning the product. Additionally, returned products should be in the same condition as when we sent them to the customer. If we discover any damage caused by the customer after we receive the goods, it will be the customer's responsibility.
