Ltc2668Cuj-12#PBF IC ADC 16BIT PIPELINED 40QFN 16:1 Analog Multiplexer 4LSB INL Integrated Circuits (ICs)/Analog Digital
Ltc2668Cuj-12#PBF IC ADC 16BIT PIPELINED 40QFN 16:1 Analog Multiplexer 4LSB INL Integrated Circuits (ICs)/Analog Digital
Regular price
$37.00 USD
Regular price
$37.00 USD
Sale price
$37.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Model Number |
Ltc2668Cuj-12 |
Mounting Type |
Ltc2668Cuj-12 |
Place of Origin |
Guangdong, China |
Product Completion Type |
Ltc2668Cuj-12 |
Description |
Ltc2668Cuj-12 |
Application |
Maximum INL Error: ±4LSB at 16 Bits |
Series |
Maximum INL Error: ±4LSB at 16 Bits |
Features |
Output Ranges: 0V to 5V, 0V to 10V, ±2.5V, ±5V, ±1 |
Functional Application |
16:1 Analog Multiplexer |
Output Voltage |
Outputs Drive ±10mA Guaranteed |
Output Type |
Guaranteed |
Features :
* Precision Reference 10ppm/°C Max
* Independently Programmable Output Ranges: 0V to 5V, 0V to 10V, ±2.5V, ±5V, ±10V
* Full 16-Bit/12-Bit Resolution at All Ranges
* Maximum INL Error: ±4LSB at 16 Bits
* A/B Toggle via Software or Dedicated Pin
* 16:1 Analog Multiplexer
* Guaranteed Monotonic Over Temperature
* Internal or External Reference
* Outputs Drive ±10mA Guaranteed
* 1.8V to 5V SPI Serial interface

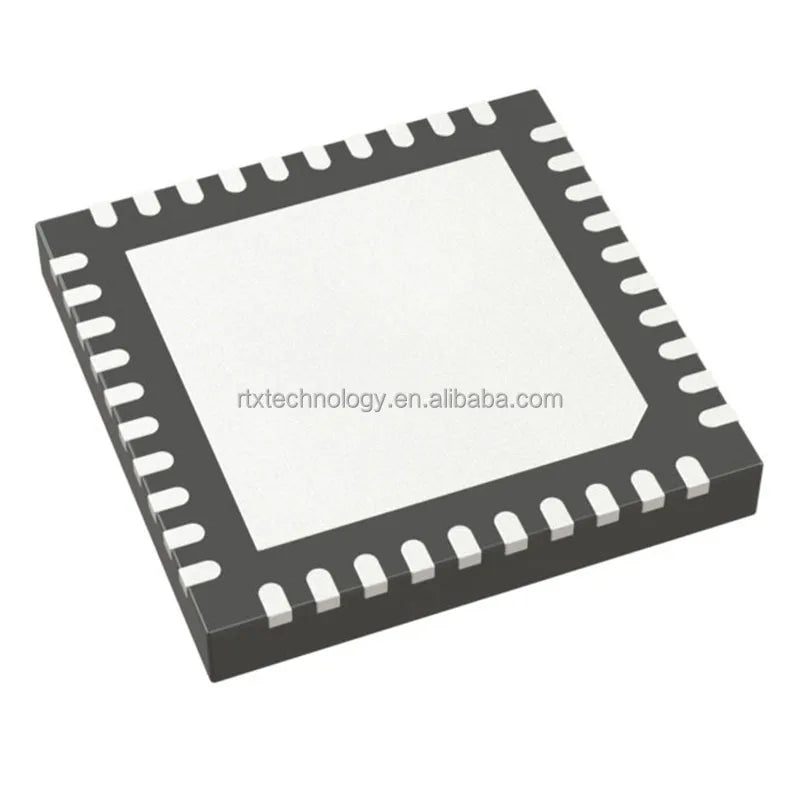

* 6mm × 6mm 40-Lead QFN Package
The LTC2668 is a family of 16-channel, 16-/12-bit ±10V digital-to-analog converters with integrated precision references. They are guaranteed monotonic and have built-in rail-to-rail output buffers. These SoftSpan™ DACs offer five output ranges up to ±10V. The range of each channel is independently programmable, or the part can be hardware-configured for operation in a fixed range.
The integrated 2.5V reference is buffered separately to each channel; an external reference can be used for additional range options. The LTC2668 also includes A/B toggle capability via a dedicated pin or software toggle command.
The SPI/Microwire-compatible 3-wire serial interface operates on logic levels as low as 1.71V at clock rates up to 50MHz.
Applications
* Optical Networking
* Instrumentation
* Data Acquisition
* Automatic Test Equipment
* Process Control and Industrial Automation
* Precision Reference 10ppm/°C Max
* Independently Programmable Output Ranges: 0V to 5V, 0V to 10V, ±2.5V, ±5V, ±10V
* Full 16-Bit/12-Bit Resolution at All Ranges
* Maximum INL Error: ±4LSB at 16 Bits
* A/B Toggle via Software or Dedicated Pin
* 16:1 Analog Multiplexer
* Guaranteed Monotonic Over Temperature
* Internal or External Reference
* Outputs Drive ±10mA Guaranteed
* 1.8V to 5V SPI Serial interface
* 6mm × 6mm 40-Lead QFN Package
The LTC2668 is a family of 16-channel, 16-/12-bit ±10V digital-to-analog converters with integrated precision references. They are guaranteed monotonic and have built-in rail-to-rail output buffers. These SoftSpan™ DACs offer five output ranges up to ±10V. The range of each channel is independently programmable, or the part can be hardware-configured for operation in a fixed range.
The integrated 2.5V reference is buffered separately to each channel; an external reference can be used for additional range options. The LTC2668 also includes A/B toggle capability via a dedicated pin or software toggle command.
The SPI/Microwire-compatible 3-wire serial interface operates on logic levels as low as 1.71V at clock rates up to 50MHz.
Applications
* Optical Networking
* Instrumentation
* Data Acquisition
* Automatic Test Equipment
* Process Control and Industrial Automation
