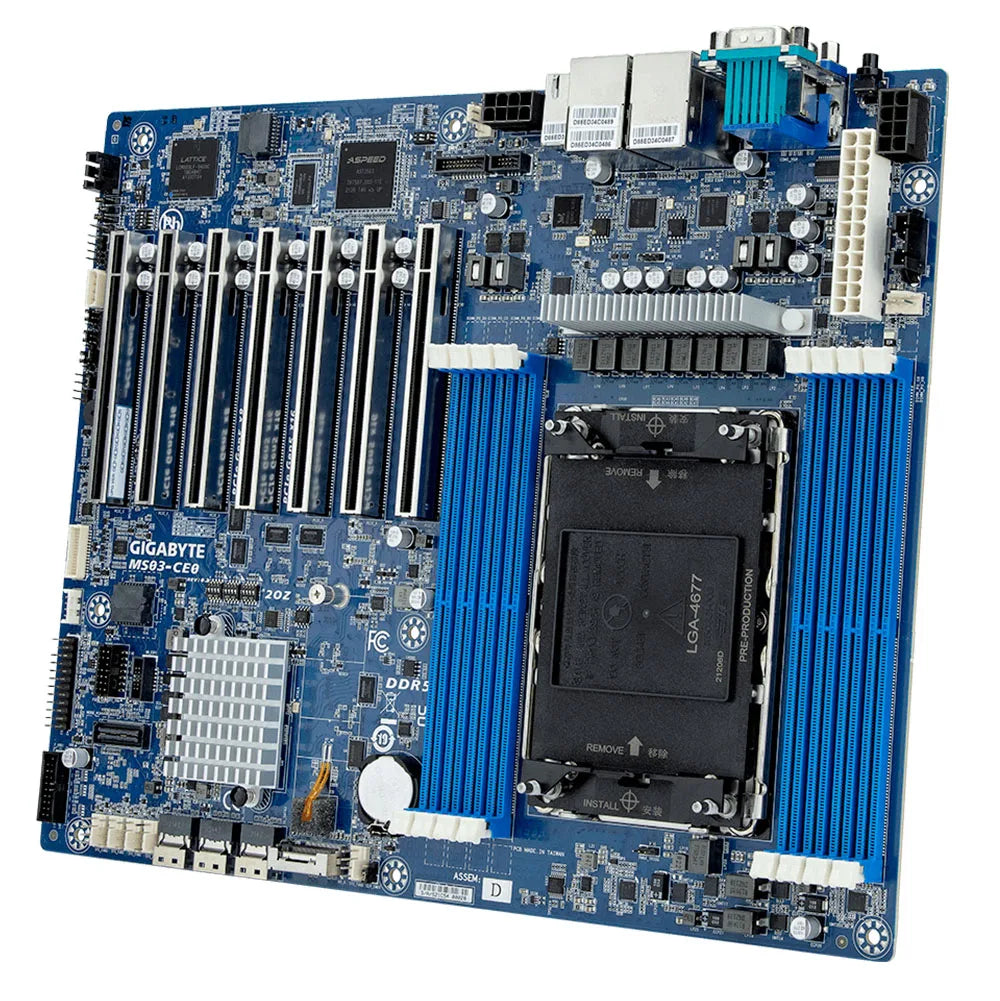

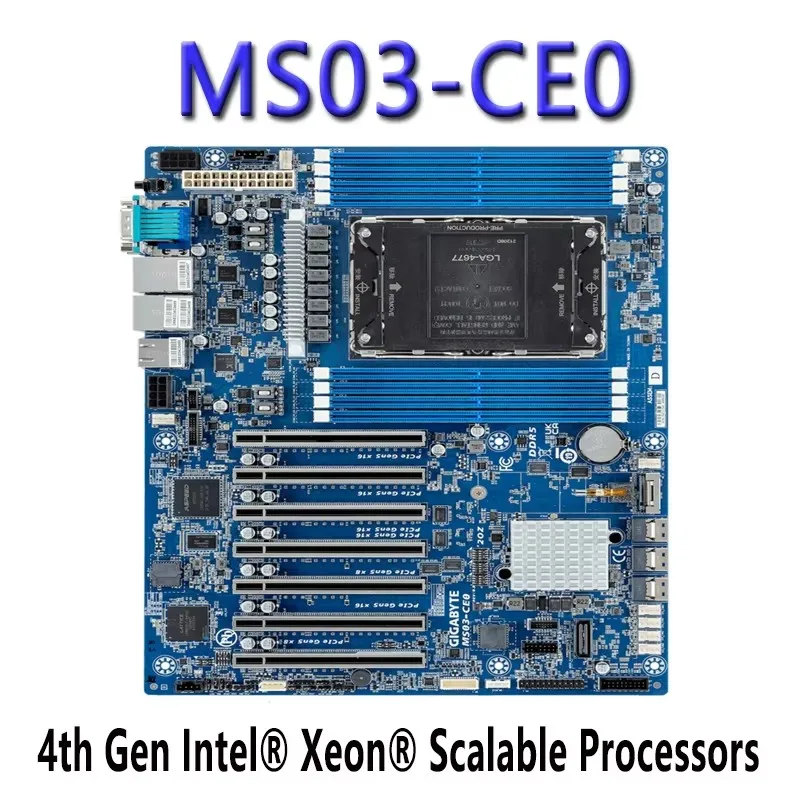

MS03-CE0 ATX Server Motherboard Supports Four 5th/4th Gen LGA4677 Socket DDR4/DDR5 RDIMM 8 X DIMM Slots Intel C741 Chipset SATA

MS03-CE0 ATX Server Motherboard Supports Four 5th/4th Gen LGA4677 Socket DDR4/DDR5 RDIMM 8 X DIMM Slots Intel C741 Chipset SATA

$980.00 USD
$980.00 USD $980.00 USD
Sale Sold out
Shipping calculated at checkout.




Board Size
ATX
304.8W x 244D mm

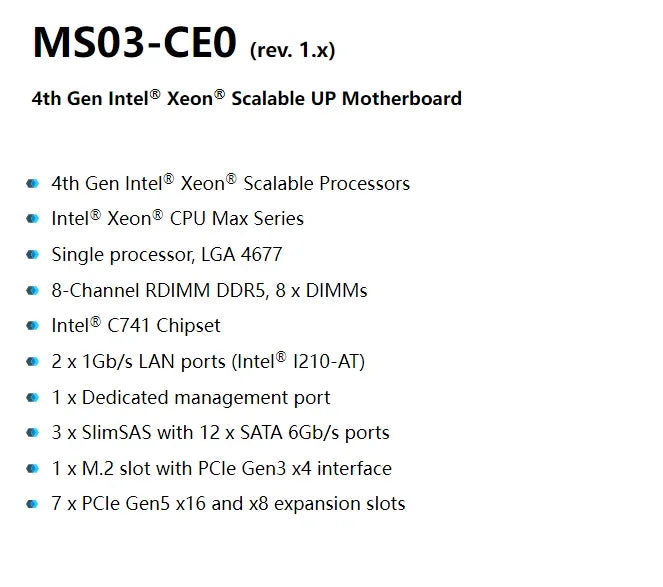

Processor Supported
5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Single processor, TDP up to 350W
Socket
1 x LGA 4677
Socket E
Chipset Description
Intel® C741
Memory Type
8 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported

5th Gen Intel® Xeon®: Up to 5600 MT/s
4th Gen Intel® Xeon®: Up to 4800 MT/s
Intel® Xeon® Max Series: Up to 4800 MT/s
Integrated Network
2 x 1Gb/s LAN ports (2 x Intel® I210-AT)
Supports NCSI function

1 x 10/100/1000 Mbps Management LAN
Integrated Video Controller
Integrated in Aspeed® AST2600
- 1 x VGA port
Integrated Audio Controller
N/A
Storage Interface
PCH:
- 3 x SlimSAS connectors for 12 x SATA 6Gb/s
Support RAID Function
Intel® SATA RAID 0/1/10/5
Expansion Slot
Slot_7: PCIe x16 (Gen5 x16) slot, from CPU
Slot_6: PCIe x16 (Gen5 x16) slot, from CPU
Slot_5: PCIe x16 (Gen5 x16) slot, from CPU
Slot_4: PCIe x16 (Gen5 x16 or x8) slot, from CPU, shared with Slot_3
Slot_3: PCIe x16 (Gen5 x8) slot, from CPU
Slot_2: PCIe x16 (Gen5 x16 or x8) slot, from CPU, shared with Slot_1
Slot_1: PCIe x16 (Gen5 x8) slot, from CPU

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from PCH
- Supports 2280 cards
On-Board Connector
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 header
1 x M.2 slot
3 x SlimSAS connectors
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x PMBus header
1 x IPMB header
1 x TPM header
Rear I/O Connectors
4 x USB 3.2 Gen1
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
OS Driver Supported
Please refer to OS compatibility table in support page

Additional certifications:
Windows Server 2022 (x64)
Server Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
PSU Connector
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
