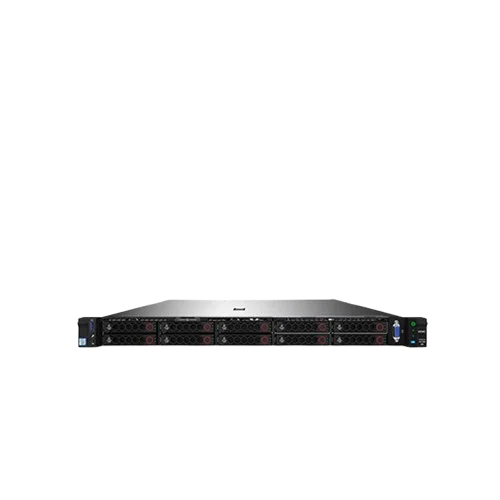

Ultra-Dense 1U Rackmount Computing Solution with Intel C621A Dual Processor Support for Space-Constrained Data Centers
Ultra-Dense 1U Rackmount Computing Solution with Intel C621A Dual Processor Support for Space-Constrained Data Centers
Regular price
$9,952.53 USD
Regular price
$9,952.53 USD
Sale price
$9,952.53 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
type |
Rack |
processor type |
Intel C621A |
place of origin |
Guangdong, China |
Processor
Up to 40 cores on a single chip with a maximum power of 270W
Memory
Supports up to 32 DDR4 memory slots at up to 3200MT/s, RDIMM or LRDIMM, up to 6TB per processor.
Storage Controller
Standard onboard array controller with SATA RAID 0/1/10/5 support
Optional HBA and array cards based on standard PCIe slots
FBWC
Optional support for up to 8GB cache with supercapacitor protection
Storage
Supports up to 12 2.5-inch hard disks (10 front + 2 rear expansion)
Supports up to four 3.5-inch hard disks (four front)
Supports SAS/SATA HDD/SSD drives; supports up to 12 NVMe U.2 drive bays and PCIe NVMe storage accelerator cards
Supports SATA and PCIe M.2 options, dual Micro SD card kit support
Networking
Onboard 1x 1Gbps dedicated management network port
Supports 1 OCP3.0 NIC with optional expansion of 4 x 1GE electrical ports or 2 x 10GE electrical/optical ports or 2 x 25GE optical
ports
Optional network adapter based on standard PCIe slot, support 1/10/25/40/100 GE NIC, IB card
Expansion Slots
Supports up to 4 PCIe 4.0 standard slots and 1 OCP 3.0 slot;
Interfaces
Standard 1 front VGA, 1 rear VGA and 1 serial port, 5 USB 3.0 (1 front, 2 rear, 2 internal), 1 front dedicated management
interface
GPU Support
Supports up to 4 single-wide GPU cards
Optical Drive
Supports external optical drive
Management
HDM agentless management tool (with separate management port) and H3C UniSystem management software, LCD touchable intelligent
management module support, 64M local video memory support
Optional U-Center data center management platform
Security
Supports security chassis, TCM/TPM security module, two-factor authentication
Power and Cooling
Optional Platinum 550W / 800W / 850W / 1200W / 1300W / 1600W 1+1 redundant power supply, optional Titanium power supply
Optional 800W negative 48V / 336V DC power supply module, support 1+1 redundancy
Supports hot-swappable redundant fans
Certifications
Support CCC, SEPA and other certifications
Operating Temperature
5℃ - 45℃ (Operating temperature support is affected by different configurations, please refer to the detailed product technical
documentation for more details)
Form Factor/Chassis Size
1U chassis:
42.9mm(H)*434.6mm(W)*780mm(D) (without security panel)
42.9mm(H)*434.6mm(W)* 808mm(D) (with security panel)
Warranty
3 years 5 x 9, next business day response (NBD)
