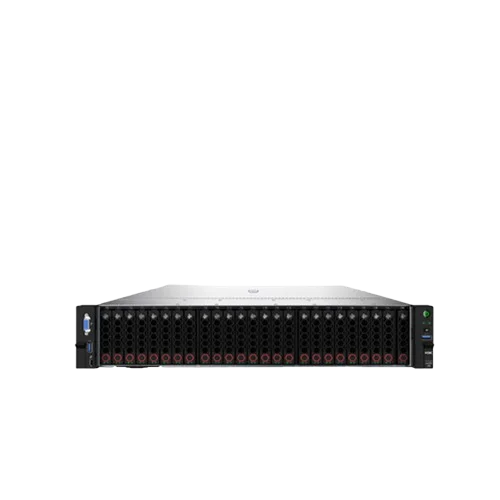

Versatile 2U Dual-Processor Intel C621A Rack Server with Expanded I/O Capabilities for Diverse Enterprise Workloads Made China
Versatile 2U Dual-Processor Intel C621A Rack Server with Expanded I/O Capabilities for Diverse Enterprise Workloads Made China
Regular price
$9,952.53 USD
Regular price
$9,952.53 USD
Sale price
$9,952.53 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
type |
Rack |
processor type |
Intel C621A |
place of origin |
Guangdong, China |
Processor
Up to 40 cores on a single chip with a maximum power of 270W
Memory
Supports up to 32 DDR4 memory slots at up to 3200MT/s, RDIMM or LRDIMM, up to 6TB per processor.
Storage Controller
Standard onboard array controller with SATA RAID 0/1/10/5 support
Optional HBA and array cards based on standard PCIe slots
FBWC
Optional support for up to 8GB cache with supercapacitor protection
Storage
Supports up to 41 hard disks (37 2.5-inch drives, 4 3.5-inch drives)
Supports up to 20 3.5-inch drives (12 front, 4 internal expansion, 4 rear expansion)
Supports up to 37 2.5-inch HDDs (25 front, 8 internal expansion, 4 rear expansion)
Support for SAS/SATA HDD/SSD drives; support for front/internal NVMe drives, up to 32 NVMe drive bays1, and PCIe NVMe storage
accelerator cards
Supports SATA and PCIe M.2 options, supports 2 Micro SD card kits
Networking
Onboard 1x 1Gbps dedicated management network port
Optional up to 2 OCP 3.0 NICs with optional expansion of 4 x 1GE electrical ports or 2 x 10GE electrical/optical ports or 2 x 25GE
optical ports
Optional network adapter based on standard PCIe slot, supports 1/10/25/40/100/200 GE NICs, IB cards
Expansion Slots
Supports up to 14 PCIe 4.0 standard slots and 1 OCP 3.0 slot (PCIe 4.0 rate)
Interfaces
Standard 1 front VGA, 1 rear VGA and 1 serial port, 6 USB 3.0 (2 front, 2 rear, 2 internal), 1 front dedicated management
interface
GPU Support
Supports up to 4 dual-width GPU cards or 14 single-width GPU cards
Optical Drive
Supports external optical drive
Management
HDM agentless management tool (with independent management port) and H3C UniSystem management software, support LCD touchable
intelligent management module, support 64M local video memory
Optional U-Center data center management platform
Security
Supports security chassis, TCM/TPM security module, two-factor authentication
Power and Cooling
Optional Platinum 550W / 800W / 850W / 1200W / 1300W / 1600W / 2000W 1+1 redundant power supply, optional Titanium power supply
Optional 800W negative 48V / 336V DC power supply module, support 1+1 redundancy
Support hot-swappable redundant fans
Certifications
Support CCC, SEPA and other certifications
Operating Temperature
5℃ - 45℃ (Operating temperature support is affected by different configurations, please refer to the detailed product technical
documentation for more details)
Form Factor/Chassis Size
2U Chassis
87.5mm(H)* 445.4mm(W)* 748mm(D)(without security panel)
87.5mm(H)* 445.4mm(W)* 776mm(D) (with security panel)
Warranty
3 years 5 x 9, next business day response (NBD)
Up to 40 cores on a single chip with a maximum power of 270W
Memory
Supports up to 32 DDR4 memory slots at up to 3200MT/s, RDIMM or LRDIMM, up to 6TB per processor.
Storage Controller
Standard onboard array controller with SATA RAID 0/1/10/5 support
Optional HBA and array cards based on standard PCIe slots
FBWC
Optional support for up to 8GB cache with supercapacitor protection
Storage
Supports up to 41 hard disks (37 2.5-inch drives, 4 3.5-inch drives)
Supports up to 20 3.5-inch drives (12 front, 4 internal expansion, 4 rear expansion)
Supports up to 37 2.5-inch HDDs (25 front, 8 internal expansion, 4 rear expansion)
Support for SAS/SATA HDD/SSD drives; support for front/internal NVMe drives, up to 32 NVMe drive bays1, and PCIe NVMe storage
accelerator cards
Supports SATA and PCIe M.2 options, supports 2 Micro SD card kits
Networking
Onboard 1x 1Gbps dedicated management network port
Optional up to 2 OCP 3.0 NICs with optional expansion of 4 x 1GE electrical ports or 2 x 10GE electrical/optical ports or 2 x 25GE
optical ports
Optional network adapter based on standard PCIe slot, supports 1/10/25/40/100/200 GE NICs, IB cards
Expansion Slots
Supports up to 14 PCIe 4.0 standard slots and 1 OCP 3.0 slot (PCIe 4.0 rate)
Interfaces
Standard 1 front VGA, 1 rear VGA and 1 serial port, 6 USB 3.0 (2 front, 2 rear, 2 internal), 1 front dedicated management
interface
GPU Support
Supports up to 4 dual-width GPU cards or 14 single-width GPU cards
Optical Drive
Supports external optical drive
Management
HDM agentless management tool (with independent management port) and H3C UniSystem management software, support LCD touchable
intelligent management module, support 64M local video memory
Optional U-Center data center management platform
Security
Supports security chassis, TCM/TPM security module, two-factor authentication
Power and Cooling
Optional Platinum 550W / 800W / 850W / 1200W / 1300W / 1600W / 2000W 1+1 redundant power supply, optional Titanium power supply
Optional 800W negative 48V / 336V DC power supply module, support 1+1 redundancy
Support hot-swappable redundant fans
Certifications
Support CCC, SEPA and other certifications
Operating Temperature
5℃ - 45℃ (Operating temperature support is affected by different configurations, please refer to the detailed product technical
documentation for more details)
Form Factor/Chassis Size
2U Chassis
87.5mm(H)* 445.4mm(W)* 748mm(D)(without security panel)
87.5mm(H)* 445.4mm(W)* 776mm(D) (with security panel)
Warranty
3 years 5 x 9, next business day response (NBD)
